Event-driven executions

An event happens outside Flyte — a file lands in a bucket, a partner drops a batch, an upstream service finishes a job — and a task should run. This tutorial builds that with AWS SQS or Google Cloud Pub/Sub, then shows the approach that uses Union’s Artifact triggers without cloud message queues.

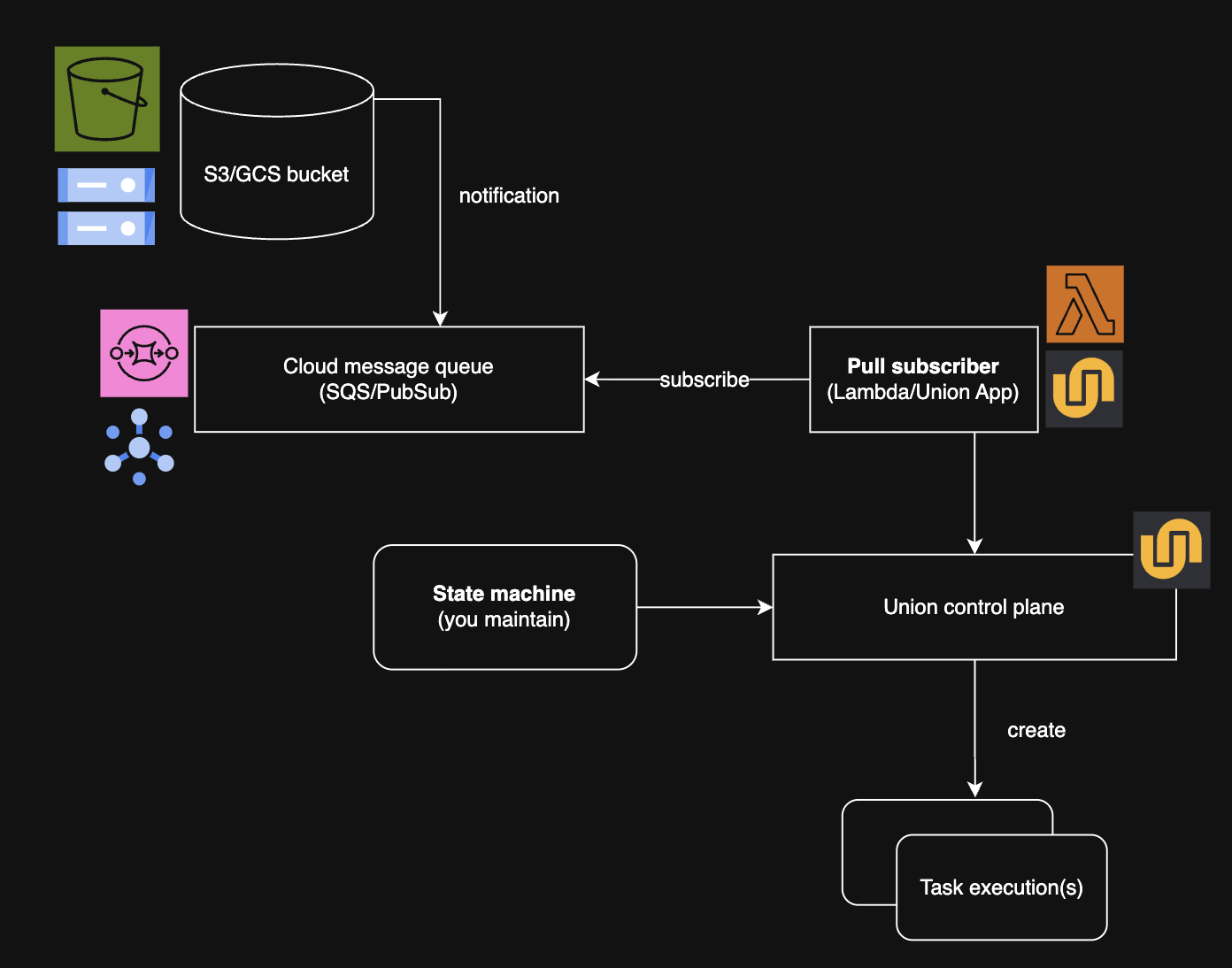

The goal of this tutorial is to show you how to go from an architecture that uses a cloud message queue:

To one that leverages Union’s automation and data lineage capabilities:

Why would you like to do that?

We believe using Union’s Artifact triggers can help you achieve the automation your ML pipelines need with fewer components to maintain and better consistency guarantees. This page will guide you to demonstrate this.

Implementation

In this tutorial we go with a Union App acting as an always-on subscriber that pulls messages from the queue and passes them to the Union Control Plane to create executions. You could implement that piece also with AWS Lambda or other serverless products.

On every cloud we launch the same task:

env = flyte.TaskEnvironment(
    name="event_driven",
    resources=flyte.Resources(cpu="1", memory="512Mi"),
)

EPOCH = datetime(1970, 1, 1, tzinfo=timezone.utc)

@env.task
async def on_object(object_key: str = "", event_time: datetime = EPOCH) -> str:
    """Process one object. Stand in for your real pipeline."""
    return f"processed {object_key} on task version {flyte.ctx().version}"

Deploy the task twice — once under a version that names this build, and once under a label the caller pins:

flyte deploy --version 2026-09-23-a3f9c21 pipeline.py env   # names this build
flyte deploy --version prod               pipeline.py env   # what production runs

Reading from AWS SQS

            flowchart LR
    subgraph aws["Your AWS account"]
        direction TB
        s3[("S3 bucket")]
        q["SQS queue"]
        dlq["Dead-letter queue"]
        s3 -->|"s3:ObjectCreated"| q
        q -.->|"after ~5 attempts"| dlq
    end

    subgraph union["Union"]
        direction TB
        sec[["Secret: flyte-api-key"]]
        app["Union app: sqs-subscriber<br/>replicas (1, 1)"]
        run(["Run of on_object"])
        sec -.->|"FLYTE_API_KEY"| app
        app -->|"2 - launch"| run
    end

    q -->|"1 - long poll"| app
    app -->|"3 - delete message"| q


Steps 2 and 3 in the diagram are in that order on purpose: the message is deleted once the run exists, not once it finishes.

A subscriber reads the queue and launches a run per message. It runs as a Union app, so there is no cluster resource to operate — deploy it and the platform keeps it alive:

flyte deploy sqs_subscriber.py app_env

The app calls back into Union to launch runs, so it needs credentials of its own. Mint an API key and store it as the secret the app mounts:

flyte create api-key --name sqs-subscriber
flyte create secret flyte-api-key --value <the-key-value>

The key carries the endpoint, so flyte.init_from_api_key needs nothing else. It does not inherit your permissions and is not scoped to a project or domain: by default it gets the org-wide Contributor policy. To restrict it to the project and domain the subscriber launches into, create it with --no-default-policies, create a policy bound to that project and domain with flyte create policy, and assign it to the key with flyte create assignment --creds-subject <client-id> --policy <policy-name> (see Custom roles and policies). Every key also keeps a baseline _system-provisioned-access policy.

Two settings matter. Apps scale to zero by default and autoscale on request volume, so it needs Scaling(replicas=(1, 1)) or it will be scaled away. It also needs something listening on the app port, which the health endpoint provides.

app_env = FastAPIAppEnvironment(
    name="sqs-subscriber",
    app=app,
    image=flyte.Image.from_debian_base(python_version=(3, 12)).with_pip_packages(
        "boto3", "fastapi", "uvicorn"
    ),
    # Apps scale to zero by default and autoscale on request volume. A subscriber
    # serves no requests, so without this it would be scaled away.
    scaling=flyte.app.Scaling(replicas=(1, 1)),
    resources=flyte.Resources(cpu="1", memory="1Gi"),
    secrets=[flyte.Secret("flyte-api-key", as_env_var="FLYTE_API_KEY")],
    env_vars={
        "QUEUE_URL": "<your queue url>",
        "FLYTE_TASK": "event_driven.on_object",
        "FLYTE_RELEASE": "prod",
    },
)

@app_env.on_startup
async def start() -> None:
    flyte.init_from_api_key(
        project=flyte.current_project(), domain=flyte.current_domain()
    )
    threading.Thread(target=poll_forever, daemon=True).start()

The polling loop runs on a background thread. Deleting a message is the acknowledgement, and it happens once the run exists — not once the run finishes:

def poll_forever() -> None:
    global _alive
    sqs = boto3.client("sqs")
    task = remote.Task.get(TASK, version=RELEASE)
    _alive = True

    while True:
        response = sqs.receive_message(
            QueueUrl=QUEUE_URL, MaxNumberOfMessages=10, WaitTimeSeconds=20
        )
        for message in response.get("Messages", []):
            inputs = to_inputs(message["Body"])
            if inputs is not None:
                try:
                    # The run name comes from the SQS MessageId, so a redelivery
                    # collides with the run that already exists rather than
                    # starting a second one.
                    run = flyte.with_runcontext(
                        name=f"sqs-{message['MessageId']}"
                    ).run(task, **inputs)
                    log.info("launched %s", run.name)
                except Exception as e:
                    if "already exists" not in str(e).lower():
                        log.exception("launch failed")
                        continue  # leave the message; SQS redelivers it
            # Deleting is the acknowledgement, and it happens once the run exists.
            sqs.delete_message(
                QueueUrl=QUEUE_URL, ReceiptHandle=message["ReceiptHandle"]
            )

S3 notifications need mapping. The message body is a JSON string wrapping records that describe the object, which is not the same shape as the task’s inputs:

def to_inputs(body: str) -> dict | None:
    """Map an S3 notification to task inputs, or None if there is nothing to act on.

    S3 delivers a JSON string wrapping a list of records. Each record describes the
    object; it is not the task's inputs, so it has to be mapped. A newly configured
    notification also sends an `s3:TestEvent`, which has no `Records` at all.
    """
    try:
        payload = json.loads(body)
    except ValueError:
        return None

    for record in payload.get("Records", []):
        if not record.get("eventName", "").startswith("ObjectCreated"):
            continue
        bucket = record["s3"]["bucket"]["name"]
        key = record["s3"]["object"]["key"]
        return {"object_key": f"s3://{bucket}/{key}"}
    return None

A newly configured notification also sends an s3:TestEvent with no Records at all. Treat it as nothing to do rather than as an error, or it will be retried until it reaches the dead-letter queue.

SQS Queue configuration

The queue policy must allow s3.amazonaws.com to sqs:SendMessage before you configure the bucket notification. S3 tests that it can reach the destination when the configuration is saved, and without the policy it fails with Unable to validate the following destination configurations. The queue and bucket must also be in the same region.

Reading from Pub/Sub

            flowchart LR
    subgraph gcp["Your Google Cloud project"]
        direction TB
        gcs[("GCS bucket")]
        topic["Pub/Sub topic"]
        sub["Pull subscription"]
        dlt["Dead-letter topic"]
        gcs -->|"OBJECT_FINALIZE"| topic
        topic --> sub
        sub -.->|"after ~5 attempts"| dlt
    end

    subgraph union["Union"]
        direction TB
        sec[["Secret: flyte-api-key"]]
        app["Union app: pubsub-subscriber<br/>replicas (1, 1)"]
        run(["Run of on_object"])
        sec -.->|"FLYTE_API_KEY"| app
        app -->|"2 - launch"| run
    end

    sub -->|"1 - streaming pull"| app
    app -->|"3 - ack"| sub


The same pieces as SQS, with delivery split in two: the bucket publishes to a topic, and the subscriber reads a subscription on it. Pub/Sub also manages the polling threads, so the handler is a callback rather than a loop:

app_env = FastAPIAppEnvironment(
    name="pubsub-subscriber",
    app=app,
    image=flyte.Image.from_debian_base(python_version=(3, 12)).with_pip_packages(
        "google-cloud-pubsub", "fastapi", "uvicorn"
    ),
    scaling=flyte.app.Scaling(replicas=(1, 1)),
    resources=flyte.Resources(cpu="1", memory="1Gi"),
    secrets=[flyte.Secret("flyte-api-key", as_env_var="FLYTE_API_KEY")],
    env_vars={
        "GCP_PROJECT": "<your gcp project>",
        "SUBSCRIPTION": "<your subscription>",
        "FLYTE_TASK": "event_driven.on_object",
        "FLYTE_RELEASE": "prod",
    },
)

@app_env.on_startup
async def start() -> None:
    global _future
    flyte.init_from_api_key(
        project=flyte.current_project(), domain=flyte.current_domain()
    )
    subscriber = pubsub_v1.SubscriberClient()
    path = subscriber.subscription_path(
        os.environ["GCP_PROJECT"], os.environ["SUBSCRIPTION"]
    )
    # max_messages bounds how much work is in flight.
    _future = subscriber.subscribe(
        path,
        callback=handle,
        flow_control=pubsub_v1.types.FlowControl(max_messages=MAX_MESSAGES),
    )

Deploy it the same way, with its own API key stored as the flyte-api-key secret:

flyte deploy pubsub_subscriber.py app_env

flow_control bounds how much work is in flight, which decides whether draining a backlog launches a controlled number of runs or a flood.

def handle(message) -> None:
    inputs = to_inputs(message)
    if inputs is None:
        message.ack()  # nothing to do; ack so it is not redelivered
        return

    try:
        # The run name comes from the Pub/Sub messageId, so a redelivery collides
        # with the run that already exists rather than starting a second one.
        task = remote.Task.get(TASK, version=RELEASE)
        run = flyte.with_runcontext(name=f"ps-{message.message_id}").run(task, **inputs)
        log.info("launched %s", run.name)
    except Exception as e:
        if "already exists" not in str(e).lower():
            log.exception("launch failed")
            message.nack()  # real failure; let Pub/Sub redeliver
            return

    message.ack()  # acknowledge once the run exists, never on completion

GCS notifications carry routing data in attributes and the object resource in data. Read the attributes: the resource describes the file rather than the work to be done.

def to_inputs(message) -> dict | None:
    """Map a GCS notification to task inputs, or None if there is nothing to act on.

    GCS puts routing data in `attributes` and the full object resource in `data`.
    That resource describes the file — `kind`, `selfLink`, `md5Hash` and so on — so
    it is metadata rather than task inputs, and reading `attributes` is both simpler
    and more stable.
    """
    attrs = message.attributes
    bucket, obj = attrs.get("bucketId"), attrs.get("objectId")
    if not bucket or not obj:
        return None
    if attrs.get("eventType") != "OBJECT_FINALIZE":
        return None  # deletes and metadata updates arrive here too

    inputs = {"object_key": f"gs://{bucket}/{obj}"}
    if timestamp := attrs.get("eventTime"):
        inputs["event_time"] = datetime.fromisoformat(timestamp.replace("Z", "+00:00"))
    return inputs

Subscription configuration

Create a pull subscription with an ack deadline of 60 seconds, 7 days of retention, and a dead-letter topic after about 5 delivery attempts. Grant the GCS service agent pubsub.publisher on the topic, or the notification config will exist and deliver nothing. Filter by object prefix and event type in the notification so unrelated bucket activity never reaches the subscriber.

What both versions have to handle

The code above is short, but every line of it is doing something, and the reasons are the same on both clouds.

Delivery is at-least-once. Both services can deliver a message more than once. The run name is derived from the message id, so a redelivery collides with the run that already exists rather than starting a second one. Uniqueness is enforced by Flyte, which means this holds even across several subscriber replicas — provided the name is deterministic and fits Flyte’s 30-character limit on run names.

The SQS subscriber above does not fit that limit: sqs- plus an SQS MessageId is longer than 30 characters. Flyte rejects the run name as an invalid run identifier, no run is created, and the message is redelivered until it reaches the dead-letter queue. Derive the SQS run name deterministically from the MessageId (a short hash, for example) and keep it to 30 characters or fewer, so a redelivery still maps to the same run.

Acknowledge on launch, not on completion. Waiting for a run to finish exhausts the visibility timeout or ack deadline, and the message is redelivered while the first run is still going.

Dead-letter what cannot be processed. A message that never parses is retried indefinitely otherwise. Acknowledge it and let the dead-letter queue hold genuine failures.

Ordering is about delivery, not completion. Two runs launched in order can finish out of order. If a pipeline must not run concurrently for the same key, enforce that in Flyte rather than at the transport.

Acknowledgement is not completion

This is the part that outlives the setup work. Because the subscriber acknowledges as soon as the run is created, a successful acknowledgement means launched, not succeeded — and the message is then gone.

If that run later fails, the queue has no idea. Flyte retries within a run, but a run that ends terminally failed leaves no message to redeliver and nothing to dead-letter. Closing that gap means building a reconciliation of your own: which messages produced runs, how each one ended, which failures should be re-fired, and how a deliberate re-fire avoids colliding with the message-id-derived run name that exists to prevent duplicates.

It is a second system holding state about the first, and it has to stay correct as both change.

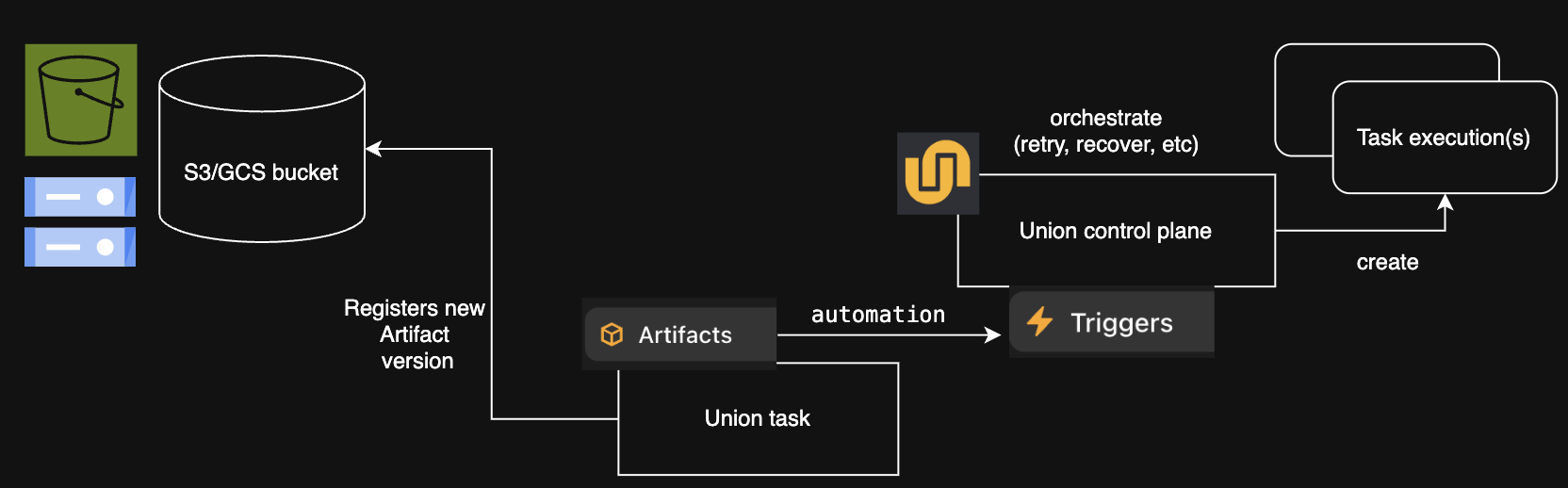

Using Union’s Artifact triggers

            flowchart LR
    subgraph union["Union"]
        direction LR
        pr(["Run of produce"])
        art[("Artifact: incoming_dataset<br/>new version")]
        trig["Trigger: on_new_dataset<br/>OnArtifact"]
        cons(["Run of consume"])
        pr -->|"Artifact.create"| art
        art --> trig
        trig -->|"bound to the dataset input"| cons
    end


Nothing sits outside Union: no queue, no subscriber, no dead-letter path, and no stored credentials.

When the event originates inside Flyte, none of the above is needed. A task publishes a new version of a named artifact, and any task with an OnArtifact trigger on that name runs automatically:

# Fires on every new version of the artifact. `TriggeredArtifact` binds the artifact
# that fired the trigger to a task input, the way `TriggerTime` does for a schedule.
on_new_data = flyte.Trigger(
    name="on_new_dataset",
    automation=flyte.OnArtifact(name=ARTIFACT),
    inputs={"dataset": flyte.TriggeredArtifact},
)

@env.task(triggers=[on_new_data])
async def consume(dataset: File) -> str:
    """Runs automatically whenever a new version of the artifact is published."""
    return f"consumed {dataset.path} on task version {flyte.ctx().version}"

Publishing is what fires it:

@env.task
async def produce(rows: int = 3) -> str:
    """Write a file and publish it as a new version of the artifact."""
    path = "/tmp/dataset.csv"
    with open(path, "w") as fh:
        fh.write("id,value\n")
        for i in range(rows):
            fh.write(f"{i},{i * 10}\n")

    file = await File.from_local(path)

    # `external_ref` is required when publishing from inside a task. Without it the
    # SDK derives provenance from the running action but omits the org, project and
    # domain, and the request is rejected.
    artifact = await Artifact.create.aio(
        file,
        name=ARTIFACT,
        description="Dataset produced by the upstream task",
        external_ref=file.path,
        attrs={"rows": str(rows), "at": datetime.now(timezone.utc).isoformat()},
    )
    return f"published {artifact.name}:{artifact.version}"

When you run produce a run of consume triggers automatically, with the artifact bound to its dataset input.

Two things disappear. The run is recorded against the artifact version that fired it, so there is no state to keep outside the platform and no reconciliation to build. And TriggeredArtifact delivers a typed artifact straight to the task input, so there is no payload to decode and no mapping to maintain — the mapping in the queue versions has no type checking against the task signature and breaks silently when either side changes.

Choosing an approach

The deciding question is where the event comes from, regardless of the cloud provider.

If an upstream Flyte task can publish the artifact — including one that ingests from a bucket on a schedule — the artifact trigger is simpler than the queue in every dimension.

If the producer is a partner, another team, or a system you cannot change, the message queue is the right tool. Registering an externally created object as a Union Artifact is possible but does not bridge the gap: you would still need to notice the object before you could register it, which is the original problem.

Next steps

Learn more about the Union features used in this tutorial:

• Triggers for schedule and artifact automation
• Apps for the subscriber runtime
