Connect your cluster

You have an organization and the cloud resources your data plane runs on. Now connect your cluster to Union.ai, and Union.ai installs the data plane into it. Your code, data and credentials stay in your cloud account.

Nothing dials in. You install an agent into your cluster, and the agent connects out to Union.ai. You do not open a port, expose an endpoint, or hand over cluster credentials.

The steps are the same on AWS, GCP, and Azure: create a cluster pool, register the cluster, and install the agent. Only the values you enter in the two forms differ, so those two steps have a tab for each provider.

What you’ll need

The values printed at the end of the provisioning page for your provider: AWS, GCP, or Azure. If you are using resources you already had, check that they meet the requirements on that page, and collect the same values for them.
Helm installed, and kubectl access to the cluster from the shell where you provisioned it.

1. Create the cluster pool

A cluster pool groups clusters that share an object store, a secret store and an image registry. A new organization has none, so you create one first.

In the Union.ai UI, select Connect your cluster, on the home page or in the sidebar.
The dialog tells you there is no cluster pool yet. Select Create cluster pool.
Select your cloud provider, and fill in its form as shown below. Your first pool is always named default, so the Pool name field is already filled in.
Select Create cluster pool.

AWS

GCP

Azure

Field	Value
S3 Bucket	The metadata bucket URI, for example `s3://my-team-union-selfserve-metadata`
Account ID	The 12-digit ID of the AWS account that holds Secrets Manager
Region	The AWS Region the cluster and Secrets Manager are in
Image registry	The ECR repository’s address, in the form `<account-id>.dkr.ecr.<region>.amazonaws.com/<repository-name>`

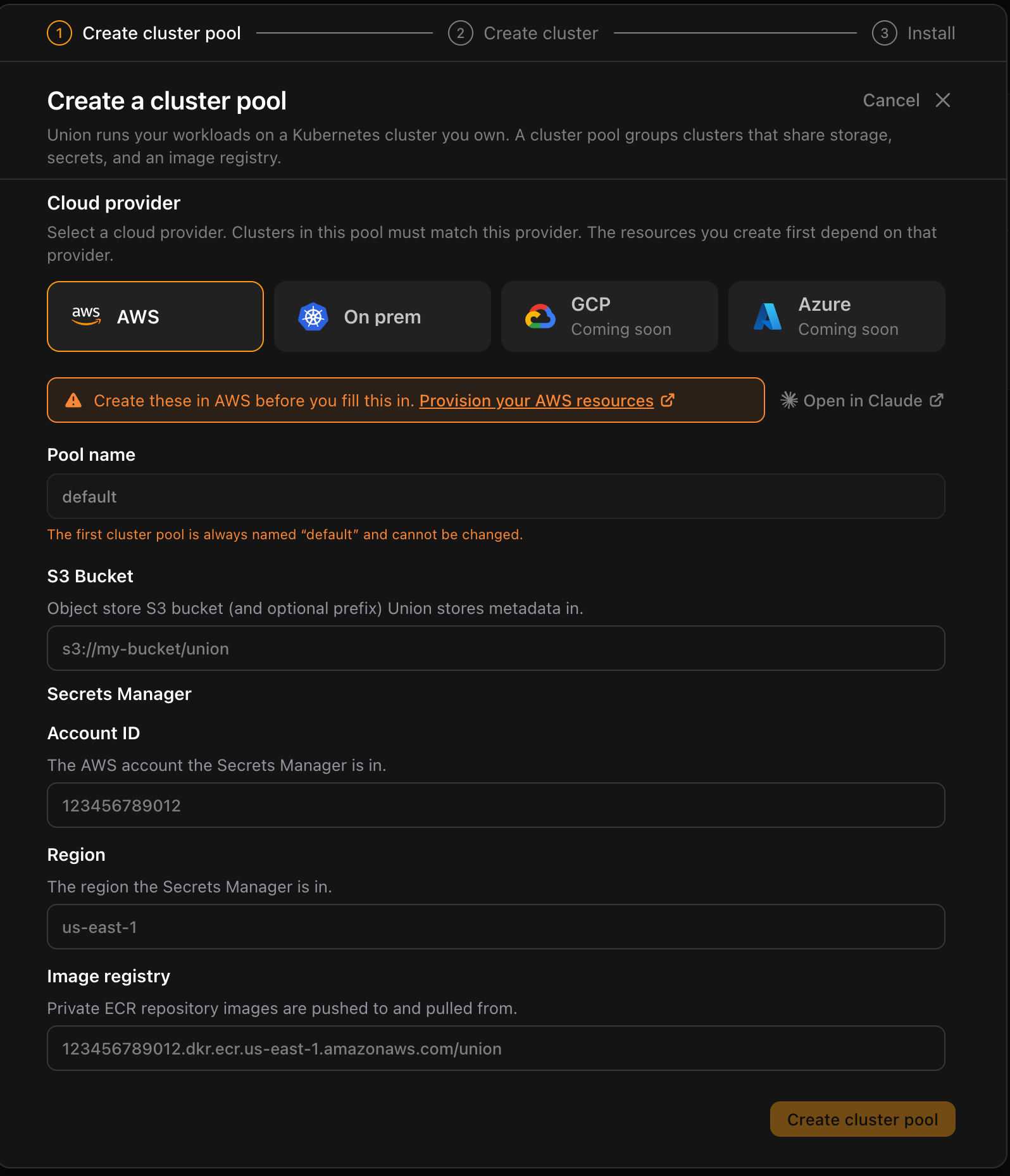

The Create a cluster pool form on the AWS tab, with S3 bucket, Secrets Manager account ID and region, and image registry fields

No secret needs to exist in Secrets Manager yet. The data plane creates and manages runtime secrets in that account and Region as it needs them.

Field	Value
GCS bucket	The bucket URI, `gs://` followed by the bucket name, with no path after it
Project ID	The project that holds Secret Manager. If you followed Provision your GCP resources, it is the same project as the cluster’s.
Image registry	The repository address, in the form `<region>-docker.pkg.dev/<project-id>/<repository>`

Field	Value
Storage container	The container’s Data Lake Storage URI, in the form `abfs://metadata@<storage-account>.dfs.core.windows.net`, with no path after it
Key Vault URI	The vault’s URI, in the form `https://<vault-name>.vault.azure.net/`
Image registry	The registry’s login server, in the form `<registry-name>.azurecr.io`. You do not need a repository path: Union.ai adds its own.

2. Register the cluster

When the pool is created, the dialog moves straight on to Register a cluster, with your new pool already selected. Fill in the form for your provider:

AWS

GCP

Azure

Field	Value
Name	A name for the cluster in Union.ai, for example `my-cluster`. You cannot change it once the cluster is registered.
Cluster pool	Already set to `default`, the pool you just created.
Namespace	Leave it empty to use `union`. The IAM roles from Provision your AWS resources trust any namespace, so the default works with them.
System IAM Role ARN	The system IAM role ARN
Task IAM Role ARN	The task IAM role ARN

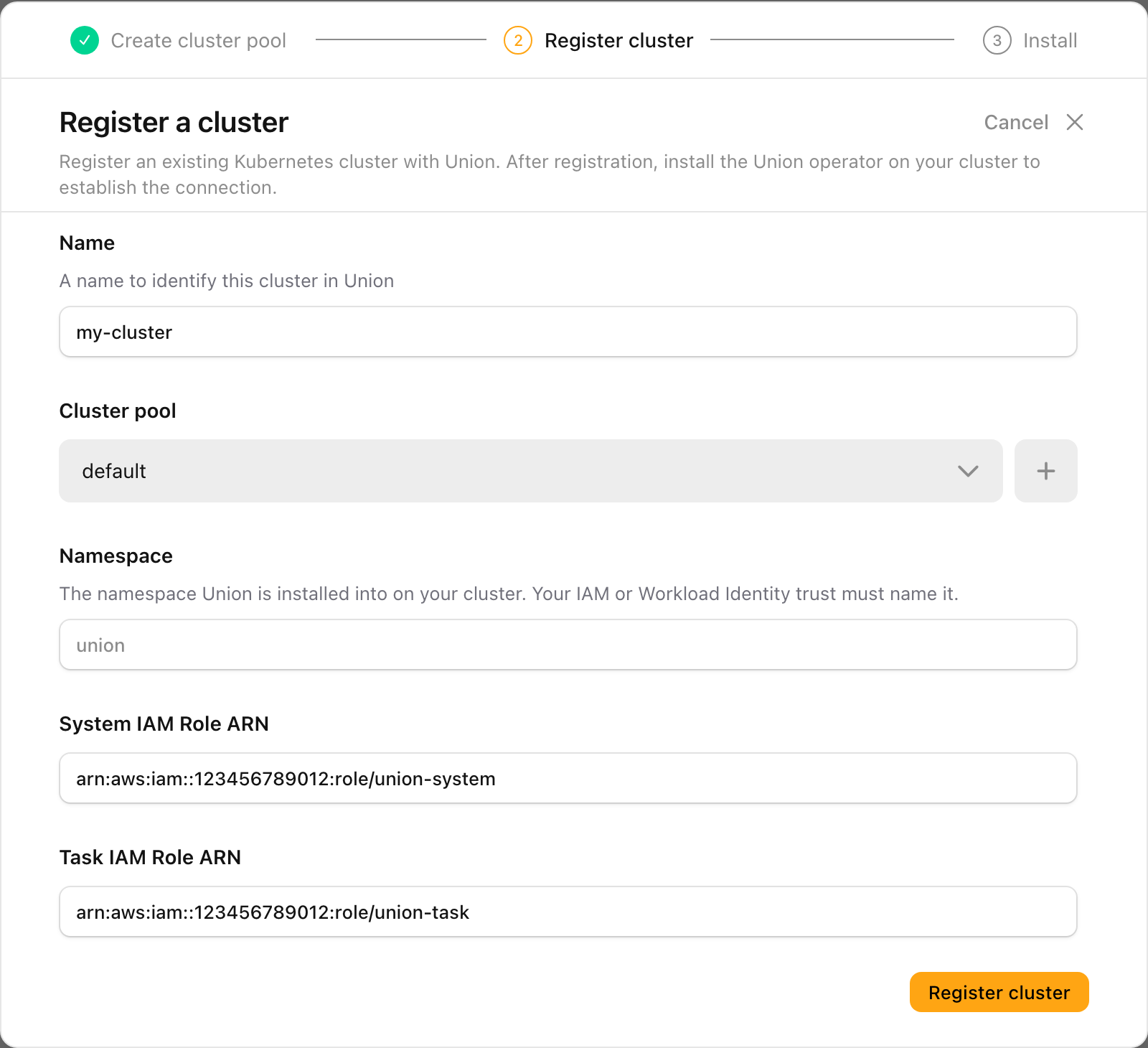

The Register a cluster dialog with a cluster name, the default pool, the namespace left at its default, and the system and task IAM role ARNs filled in

Field	Value
Name	A name for the cluster in Union.ai, for example `my-cluster`. You cannot change it once the cluster is registered.
Cluster pool	Already set to `default`, the pool you just created.
Namespace	Leave it empty to use `union`. The Workload Identity binding from Provision your GCP resources covers every namespace in the cluster. If you bound only specific service accounts instead, enter the namespace you bound them in.
Project ID	The project the GKE cluster runs in
Region	The cluster’s region, for example `us-central1`, not a zone
System service account email	The system service account’s email
Task service account email	The task service account’s email

Field	Value
Name	A name for the cluster in Union.ai, for example `my-cluster`. You cannot change it once the cluster is registered.
Cluster pool	Already set to `default`, the pool you just created.
Namespace	Exactly the namespace you chose in Provision your Azure resources. If you kept `union`, you can also leave the field empty.
Subscription ID	The subscription the AKS cluster is in
Tenant ID	The Microsoft Entra ID tenant the subscription belongs to
Resource group	The resource group the AKS cluster is in. Union.ai uses it to link to your task logs in the Azure portal.
System client ID	The system identity’s client ID, not its principal ID
Task client ID	The task identity’s client ID, not its principal ID
Log Analytics workspace ID (optional)	The workspace’s resource ID, which starts with `/subscriptions/`. Without it, the Union.ai UI shows task logs only while the pods exist.

Select Register cluster. Union.ai registers the cluster and takes you to its page, where you install the agent. Registering does not put anything on your cluster by itself.

3. Install the agent

The cluster’s page, Install Union on your AWS cluster (or GCP, or Azure), shows an install command generated for this cluster. Copy it with Copy install command, and run it in the shell where kubectl can reach the cluster. The agent installs itself and connects out to Union.ai.

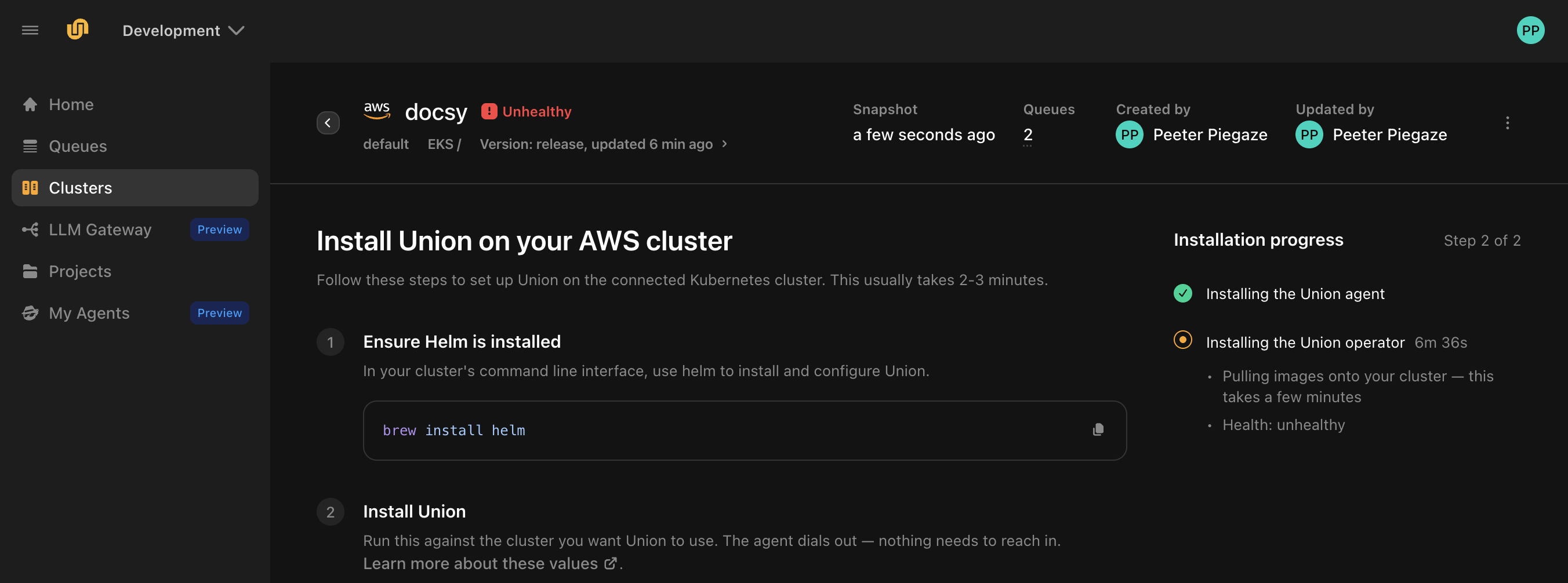

The Install Union on your AWS cluster page, with the Ensure Helm is installed and Install Union steps, and the Installation progress panel showing the agent installed and the Union operator installing

The command writes a values.yaml for your cluster, then installs the agent from it with Helm. In outline, with the generated values left out, it looks like this:



cat <<'UNION_DP_AGENT_VALUES' > values.yaml
# ...the values the UI generated for your cluster...
UNION_DP_AGENT_VALUES

helm upgrade --install dp-agent oci://ghcr.io/omnistrate/dataplane-agent-chart \
  --version <chart-version> \
  --namespace dataplane-agent --create-namespace --values values.yaml \
  --set nameOverride=dp-agent --timeout 10m0s --wait

This outline is only to show you what the command does, and you cannot run it as shown. Use Copy install command to get the real command from the UI, with the values and chart version for your cluster.

The values are a credential

The values.yaml block contains the agent’s client certificate and private key. Treat it like any other secret: do not paste it into a ticket, a chat message, or a shared document, and delete the file once the agent is installed.

4. Wait for the data plane

The Installation progress panel on the cluster’s page tracks two phases:

Phase	What is happening
Installing the Union agent	The agent starts in your cluster and connects out to Union.ai. The panel shows the connection status.
Installing the Union operator	Union.ai installs the data plane through that connection. The panel shows the cluster’s health.

Only the first phase needs you. Once the agent connects, Union.ai installs the data plane itself, so there is nothing more to run. The second phase takes a few minutes on a new cluster, mostly spent pulling images. You can leave the page while it runs and come back to it later. Until it finishes, the cluster shows as Unhealthy at the top of the page. That is expected during the install.

If you check progress with kubectl, the agent runs in the dataplane-agent namespace, and the data plane installs into the namespace you entered when you registered the cluster, or union if you left it empty.

When the install finishes, the panel reads Complete, and the cluster shows as Healthy next to its name:

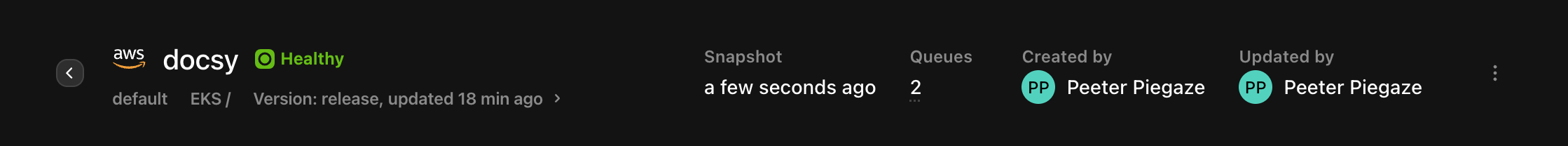

The cluster page header, showing the docsy cluster on AWS with a green Healthy badge

On Azure, also check that the data plane’s service accounts carry the right client IDs. In the shell where you provisioned the resources, run:


kubectl -n "$UNION_DATAPLANE_NAMESPACE" get sa union-system union \
  -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.metadata.annotations.azure\.workload\.identity/client-id}{"\n"}{end}'

union-system must show AZURE_SYSTEM_CLIENT_ID, and union must show AZURE_TASK_CLIENT_ID. If the namespace has no such service accounts, the data plane was installed into a different namespace from the one the federated credentials trust.

5. Run a workload on the cluster

With a connected cluster, run the hello.py workflow from Run your first workflow locally again, this time without --tracked. The same code now runs on your cluster instead of on your own machine:

flyte run hello.py main

The run appears under Runs in your project, not under Tracked Runs, which is for runs that execute on your own machine. See Run modes for how the two differ.

Next steps

That completes the setup. Union.ai now runs your workloads on your own infrastructure.

To learn how to build workflows with Union.ai, continue with Get started in the user guide.
